Operations Data Workbench

产品定位

Positioning

它不是替你画图，是替你把表格先收拾明白

Not just charts; it gets the tables under control first

我不喜欢把“后续可配置”写成一句空话，所以这里把适配、运行、校验和打包做成一条能重复执行的链路。换团队、换品类、换表头，都先从 profile 开始。

The point is not a pretty chart with vague promises. Adaptation, execution, validation, and packaging are one repeatable chain. New team, category, or headers: start with a profile.

先接住乱文件

Catch the messy folder

CSV、XLSX、XLSM 都能进来；文件名只是弱线索，不把命运交给命名规范。

CSV, XLSX, and XLSM can enter. File names are weak hints, not the whole story.

代码先判断

Code makes the first call

表头、字段形态、来源线索先走本地规则，能确定的就不外发。

Headers, column shapes, and source hints are handled locally before any outside help is considered.

边界再求助

Ask for help at the edge

只有低置信度表才会走模型辅助，而且默认只给表头和字段形态，不塞整包数据。

Only low-confidence tables use model help, and the default payload is headers plus column shapes.

最后可运行

End with runnable config

产物不是 PPT：file_types、field_mapping、metrics 和报告都能被下一条命令使用。

The output is not a slide: file types, field mapping, metrics, and report feed the next command.

表格适配

Table adaptation

新来的表格，先让它自己长出 profile

Let a new spreadsheet folder grow its own profile first

这就是 0.3 beta 的核心：不是假装所有表头都很标准，而是承认现实很乱，然后把“猜、改、跑、复查”收成一条可追踪流程。

This is the core of 0.3 beta: do not pretend every header is clean. Accept the mess, then turn guessing, editing, running, and review into a traceable flow.

扫描文件夹

Scan the folder

读取 CSV/XLSX/XLSM，记录表头、文件名和列形态，避免一上来就把业务数据搬出去。

Read CSV/XLSX/XLSM headers, file names, and column shapes without moving business data out first.

生成三份配置

Generate three configs

自动写出 file_types、field_mapping、metrics，能直接交给现有 run 命令。

Write file_types, field_mapping, and metrics that the existing run command can use directly.

低置信度才走外部模型

Use a model only when confidence is low

API Key 只从环境变量读取；生成文件里不保存 Key，不默认发送原始行数据。

The API key is read from the environment; generated files do not store keys or raw rows by default.

adapt → validate → run 接入一批新表格的最短路径 Shortest path for a new spreadsheet folder

0.3 beta

python -m factory_excel_ops.cli adapt `
  --input incoming_exports `
  --output output\incoming_profile

python -m factory_excel_ops.cli validate-config `
  --file-types output\incoming_profile\file_types.json `
  --field-mapping output\incoming_profile\field_mapping.json `
  --metrics output\incoming_profile\metrics.json

python -m factory_excel_ops.cli run `
  --input incoming_exports `
  --output output\incoming_run `
  --file-types output\incoming_profile\file_types.json `
  --field-mapping output\incoming_profile\field_mapping.json `
  --metrics output\incoming_profile\metrics.json

产品系统

Product system

工作台由四层组成，每一层都能独立审计

The workbench has four auditable layers

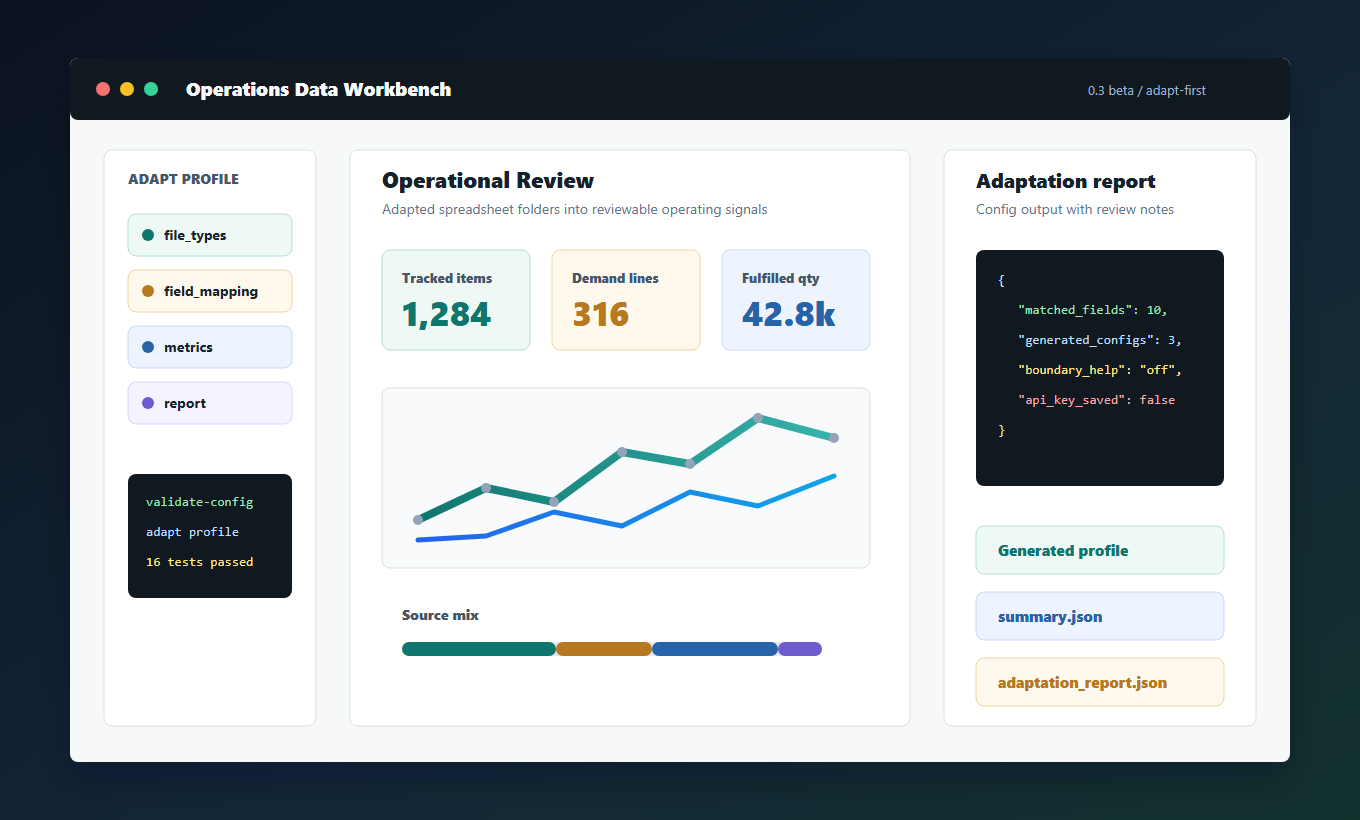

主视觉展示的是产品结构本身：来源 profile、指标看板、质量门禁和报表上下文，而不是与业务无关的装饰图。

The primary visual shows the product structure itself: source profiles, metric dashboard, quality gates, and review context.

Operations Data Workbench product interface

01

Profile 层

Profile layer

来源签名、字段别名和指标口径都在配置中表达，避免把私有模板固化到代码。

Source signatures, field aliases, and metric definitions live in config, not workbook templates embedded in code.
02

Pipeline 层

Pipeline layer

分类、映射、规范化和计算分别保留边界，错误更容易定位。

Classification, mapping, normalization, and calculation remain separated for easier diagnosis.
03

Review 层

Review layer

HTML 看板和 summary.json 同源，视觉展示和机器摘要不会分叉。

The HTML dashboard and summary.json share the same source, keeping visual review and machine context aligned.
04

Handoff 层

Handoff layer

analysis context 是有边界的交接格式，适合报告、检查建议和自动化任务。

Analysis context is a bounded handoff format for reports, next checks, and automation.

质量与可信度

Quality and trust

把工程证据放在展示页面上

Put engineering evidence on the page

优秀数据产品不会只展示漂亮图表，还会说明数据边界、发布检查和可维护性。这里把可重复验证的质量面直接放在页面上。

Strong data products do not only show attractive charts; they expose boundaries, release checks, and maintainability. This section keeps repeatable quality evidence visible.

配置校验

Config validation

运行前检查来源画像、字段别名和指标规则；adapt 生成的 profile 也必须过这一关。

Checks source profiles, field aliases, and metric rules; adapted profiles must pass the same gate.

低置信度保护

Confidence guard

不确定来源会进入警告路径；需要外部模型辅助时，也会写进 adaptation report。

Uncertain sources produce warnings; model-assisted boundary handling is recorded in the adaptation report.

包内容门禁

Package gate

发布包检查会排除输入目录、生成输出、Excel 工作簿、可执行文件和嵌套归档。

Release package checks exclude input folders, generated outputs, workbooks, executables, and nested archives.

CI 矩阵

CI matrix

GitHub Actions 在 Python 3.10、3.11、3.12 上执行测试、样例管线、adapt 配置生成、analysis context 和打包检查。

GitHub Actions runs tests, sample pipeline, adapted profile generation, analysis context, and package checks on Python 3.10, 3.11, and 3.12.

发布门禁

Public release gate

这些命令既是本地验证路径，也是 CI 里的核心行为。页面展示的是能被重复验证的工程状态。

These commands are both the local verification path and the core CI behavior. The page shows an engineering state that can be repeated.

release gate

python -m pytest -q
python -m factory_excel_ops.cli validate-config
python -m factory_excel_ops.cli run --input sample_data --output output
python -m factory_excel_ops.cli adapt --input sample_data --output output/adapted_profile
python -m factory_excel_ops.cli analysis-context --summary output/summary.json --output output/analysis_context.json
python scripts/package_project.py --name release-check --output output

数据边界

Data boundary

产品核心可复用，业务适配留在本地

Reusable product core, local business adapters

页面强调的是可移植结构：profile、pipeline、dashboard、reporting handoff。真实业务导出、内部字段规则、API Key 和部署细节保留在使用方自己的环境里。

The page emphasizes portable structure: profile, pipeline, dashboard, and reporting handoff. Real exports, internal field rules, API keys, and deployment detail stay in the user's own environment.

仓库不包含

Not included

真实 ERP/WMS/MES 导出、客户或供应商记录、员工或订单数据、BOM、发运、财务、人事数据、私有工作簿模板、桌面二进制包、内部部署路径或操作日志。

No real ERP/WMS/MES exports, customer or supplier records, employee or order data, BOMs, shipment, finance, HR data, local workbook templates, desktop binaries, internal deployment paths, or operator logs.

仓库保留

Included

可复用的分类、映射、指标、看板、分析上下文、测试、配置样例、文档和发布安全门禁。

Reusable classification, mapping, metrics, dashboards, analysis context, tests, sample configs, docs, and release safety gates.

代码与交付面

Code and delivery surface

适配、运行、输出和发布路径放在同一张工作台上

Adaptation, run path, outputs, and release checks in one workbench

评估者不需要在 README、源码和脚本之间来回猜。页面直接展示 adapt 命令、最小运行路径、summary 契约和发布门禁。

Reviewers do not need to guess across the README, source tree, and scripts. The page shows the adapt command, minimum run path, summary contract, and release gate together.

Developer surface

一个能自己长 profile 的本地工作台

A local workbench that can grow its own profiles

命令行负责适配和运行，JSON profile 负责可移植配置，HTML、summary.json 和 adaptation report 负责复查和交接。

The CLI handles adaptation and runs, JSON profiles keep configuration portable, and HTML, summary.json, plus adaptation reports support review and handoff.

3.10-3.12 CI 版本矩阵 CI version matrix

5 通用来源类型 Generic source types

16 回归测试 Regression tests

0 真实业务数据 Real business data

运行路径

Run path

01 先生成 profile Generate the profile first 对新表格先跑 adapt，把可疑判断写进报告。 Run adapt on new folders and keep uncertain calls in the report.
02 校验 profile Validate profiles 在读取数据前检查来源、字段和指标规则。 Check source, field, and metric rules before data processing.
03 生成看板和摘要 Build dashboard and summary 同一条管线输出 HTML 和可读 JSON。 One pipeline emits HTML and readable JSON.
04 打包前复查 Review before packaging 发布包门禁排除私有目录、生成输出和二进制包。 Package gates exclude sensitive folders, generated output, and binary bundles.

关键文件

Key files

cli.py entry adapter_builder.py adapt classifier.py source metrics.py metric

01# create an isolated local workspace
02py -m venv .venv
03.\.venv\Scripts\python -m pip install -e ".[dev]"
04
05# validate config before reading records
06.\.venv\Scripts\python -m factory_excel_ops.cli validate-config
07
08# build the local dashboard and summary
09.\.venv\Scripts\python -m factory_excel_ops.cli run --input sample_data --output output
10start output\dashboard.html

01# build a runnable profile from unfamiliar tables
02python -m factory_excel_ops.cli adapt --input incoming_exports --output output\incoming_profile
03
04# optional boundary help reads keys from environment variables
05$env:FACTORY_EXCEL_OPS_API_KEY = "<your key>"
06$env:FACTORY_EXCEL_OPS_MODEL_ENDPOINT = "https://your-provider.example/v1/chat/completions"
07$env:FACTORY_EXCEL_OPS_MODEL = "<model name>"
08python -m factory_excel_ops.cli adapt --input incoming_exports --output output\incoming_profile --enable-model-assist
09
10# generated: file_types.json, field_mapping.json, metrics.json, adaptation_report.json

01{
02  "inventory": {
03    "headers": ["item code", "available qty"],
04    "values": ["stock", "on hand"],
05    "filename": ["inventory", "stock"]
06  },
07  "demand": {
08    "headers": ["required qty", "due date"],
09    "values": ["forecast", "order"]
10  }
11}

01{
02  "file_count": 5,
03  "record_count": 14,
04  "by_source_type": {
05    "inventory": 4, "demand": 3, "fulfillment": 2
06  },
07  "metrics": [
08    {"key": "inventory_items", "value": 4},
09    {"key": "shipment_qty", "value": 50}
10  ],
11  "warnings": []
12}

01python -m pytest -q
02python -m factory_excel_ops.cli validate-config
03python -m factory_excel_ops.cli run --input sample_data --output output
04python -m factory_excel_ops.cli adapt --input sample_data --output output\adapted_profile
05python -m factory_excel_ops.cli analysis-context --summary output/summary.json --output output/analysis_context.json
06python scripts/package_project.py --name factory-excel-ops-dashboard-v0.3.0-beta.1 --output output
07
08# package gate: no sensitive folders, generated output, workbooks, executables, or nested archives

dashboard.html 本地复查看板 Local review dashboard

summary.json 指标和来源摘要 Metrics and source summary

integration_interface.json 集成契约 Integration contract

adaptation_report.json 适配复查报告 Adaptation review report

release package 可复查交付包 Reviewable delivery bundle

产品路线图

Product roadmap

路线图不靠喊口号，按可运行能力往前推

The roadmap moves by runnable capability, not slogans

0.3 beta 已经把“任意表格先适配”落到命令行、测试和 CI。后续继续围绕审计表、导出能力和本地服务打磨。

0.3 beta turns table adaptation into CLI, tests, and CI. Next work tightens audit tables, exports, and local serving.
